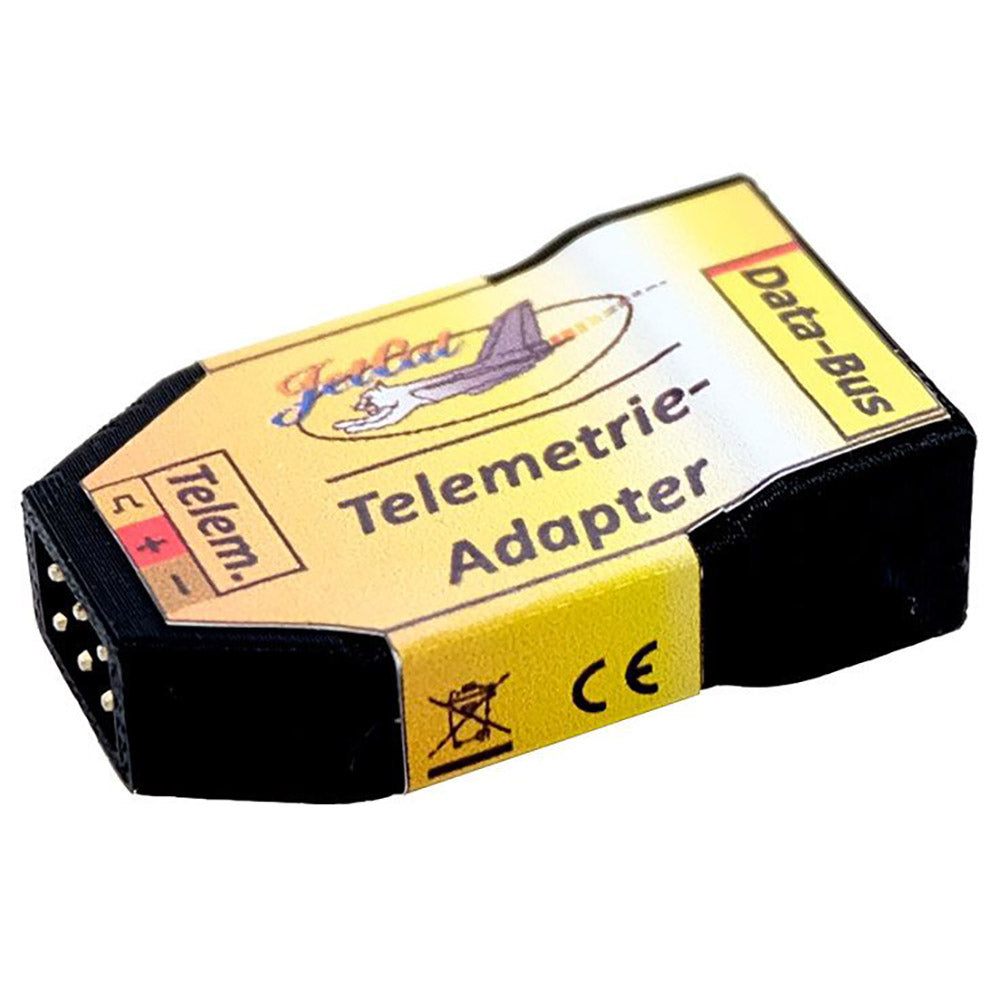

Telemetry Adapter, for JetCat V10/V6 ECU Models
- The JetCat telemetry adapter connects directly to the ECU data bus.
- The output of the telemetry adapter is typically directly connected to the receiver (Telemetry input of the receiver).
- The adapter has two outputs connected in parallel so that another device or sensor can be connected to the 2nd port.
- The following values can be transferred depending on the system used:
- Exhaust gas temperature in ° C
- Turbines actual speed in 1/min
- Pump voltage in V
- Voltage of the turbine battery in V
- Current consumption in A. Only for ECU V10.0 or higher
- Battery capacity in mAh (Turbine battery). Only for turbines with generator function (for example P220RXi, P180-NX)
- Turbine state and error codes
- rest fuel in ml / rest fuel in%
- fuel flow in ml/min
- Altitude in meters. Only with ECU V10.0 or higher
- Thrust in N
- Turbines Set speed in 1/min
- Airspeed in km/h
- Speed of second shaft (propeller speed for turboprops or main rotor speed for helicopter engines)
Starting Telemetrie Adapter with firmware V. 9.0, the following systems are supported:
| V10.0 | V6.0 | |
|---|---|---|
| Ab ECU Software Version | 10.4P | 6.42 |
| Futaba SBUS-2 | ✓ | ✓ |
| Graupner HOTT | ✓ | ✓ |
| MPX M-Link1 | ✓ | ✓ |
| MPX M-Link2 | ✓ | ✓ |
| Jeti | ✓ | ✓ |
| Jeti-NoAlarms | ✓ | |
| Mikado Vbar | ✓ | |
| PowerBox Core | ||
| Spektrum |
ATTENTION:
- ECU V5/6: LED I/O board 61108-0000 with 8-pin ERNI socket necessary
- ECU V10 LED I/O board Mini 61108-0050 necessary
- ECU V6 with firmware 6.42 or higher required
