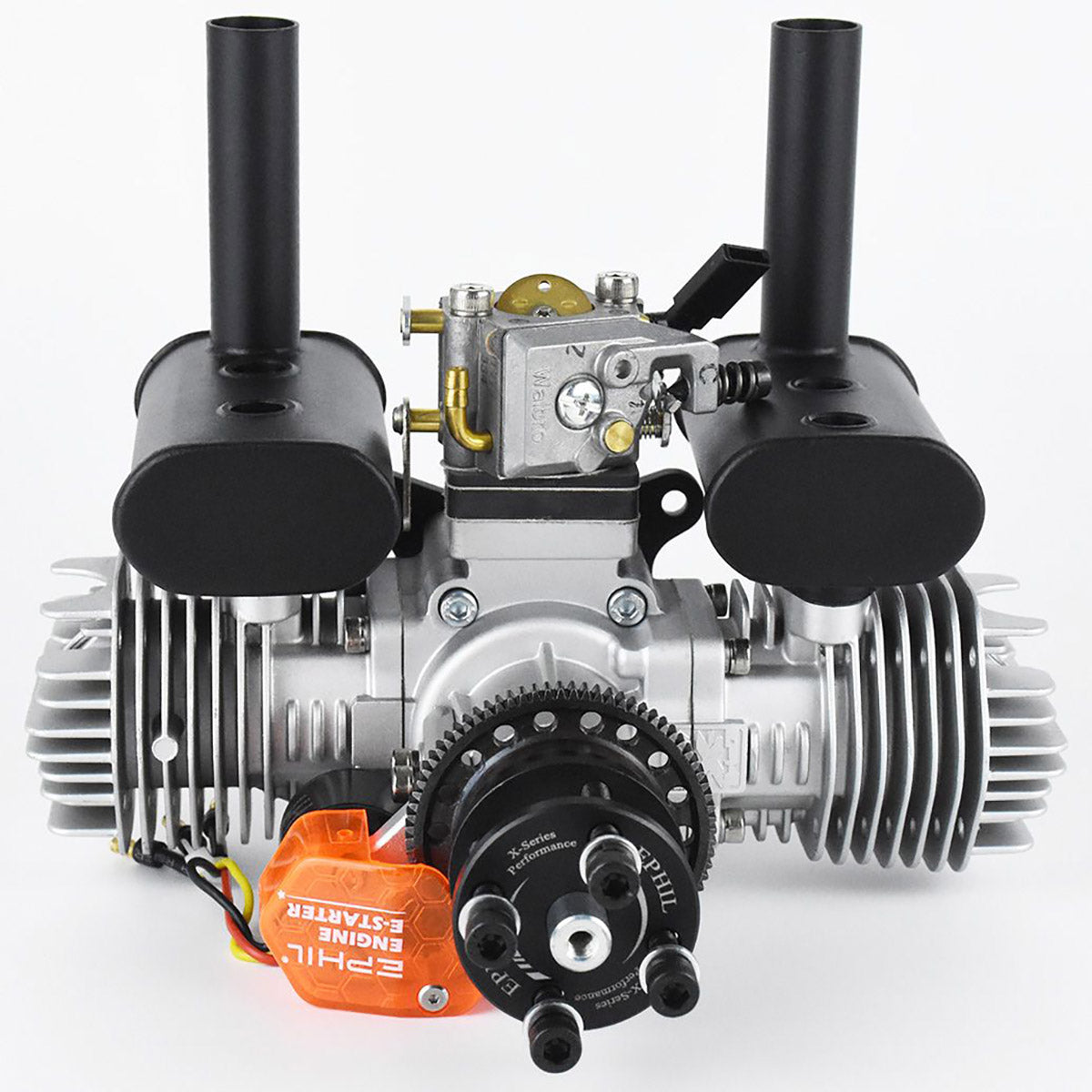

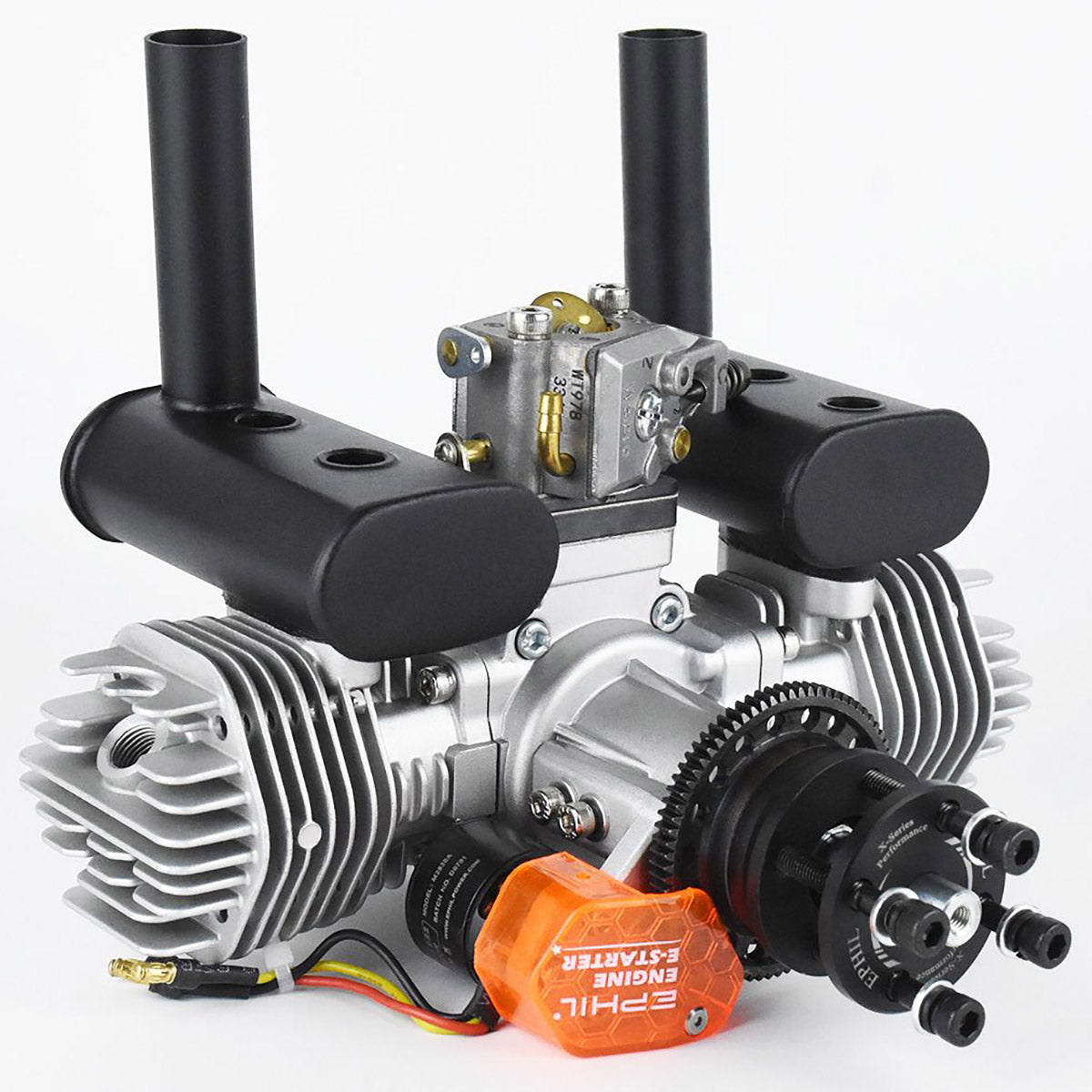

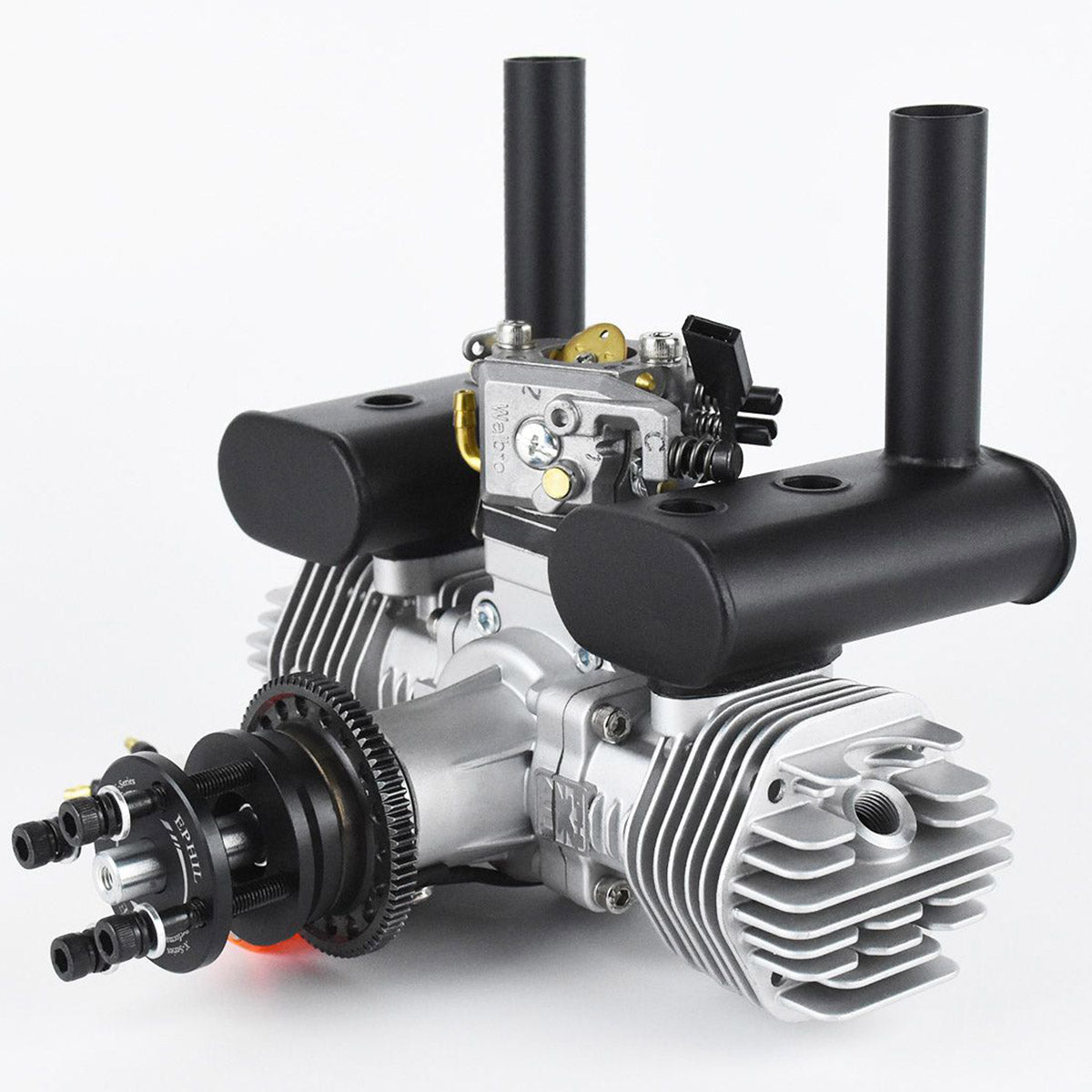

EPHIL X-Series 40cc-T Pro Gasoline Twin Engine with E-Starter, Spark Plugs & Electronic Ignition
ESC Battery Not Included - See Related Products to Purchase
Click Here for the ESC Starting Manual
- Note: Not compatible with DLE/RC Excel Tachometers
- Precision Manufacturing Using High Quality Aluminum Alloy Construction
- NSK Bearings with Walbro Carburetor
- Stable Running with Powerful Performance
- Long Life Span
- Easy to Start and Easy Maintenance
EPHIL CM6 Iridium Spark Plug: More stable in high-temperature working environments with oil-gas mixture. Has a longer lifespan than the regular CM6 spark plug.
Muffler: It is very easy to adapt a smoke system on the muffler. The smoke oil tube will fit into a brass fuel port.

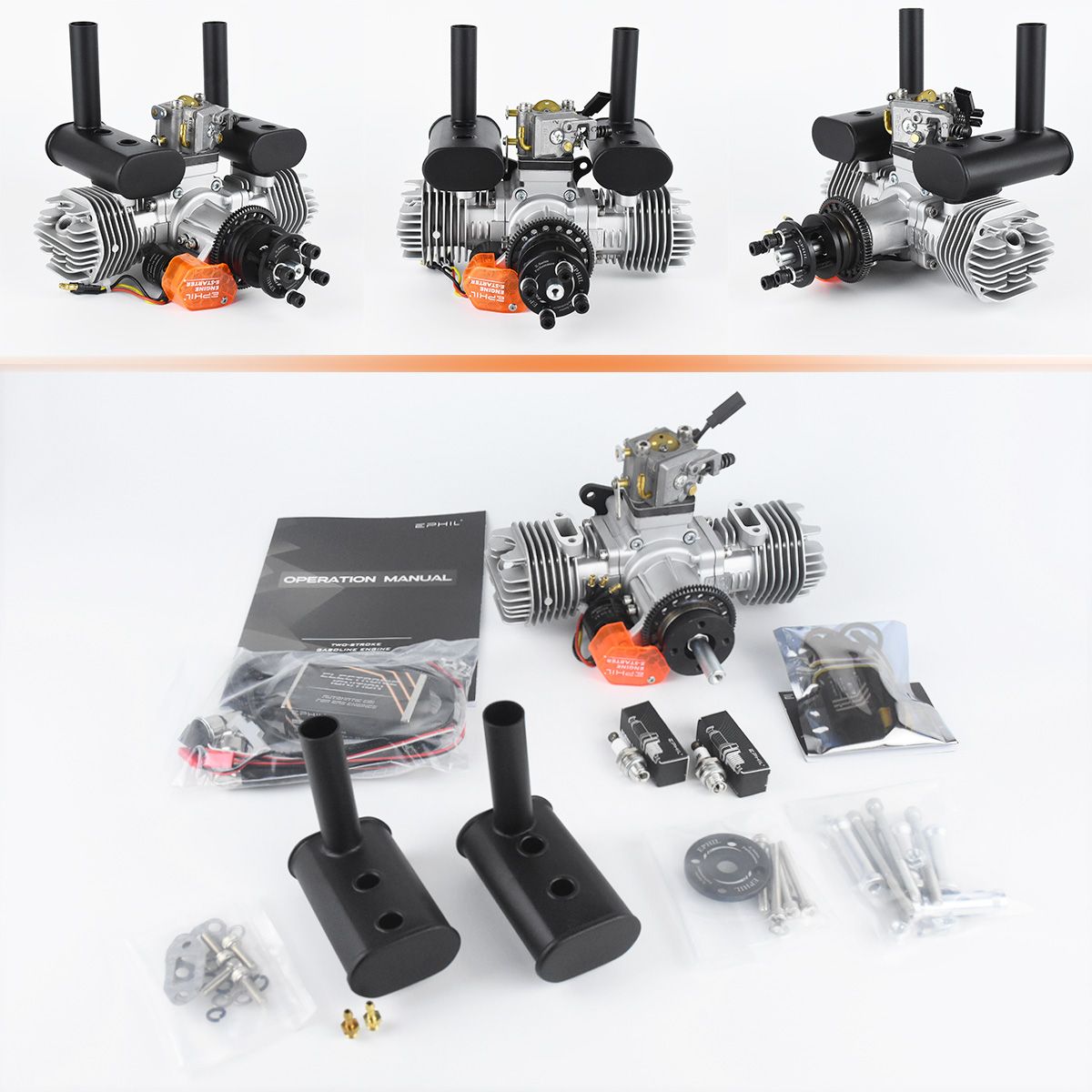

X-Series PRO Includes:
- X-Series PRO Engine
- Engine Muffler Set (L & R)
- (2) CM-6 Iridium Spark Plugs
- Starter ESC
- Electronic CDI Ignition Module
- Aluminum Engine Standoffs
- Manual and Warranty Card
EPHIL Engine Electric Starter
EPHIL's engine e-starter is meticulously designed and crafted specifically for the PRO engines. The e-starter has undergone multiple rigorous testing to ensure unparalleled efficiency and reliable use.
- High Efficiency and Quick Response
- Longer Engine Lifespan
- Lightweight Electric Starting

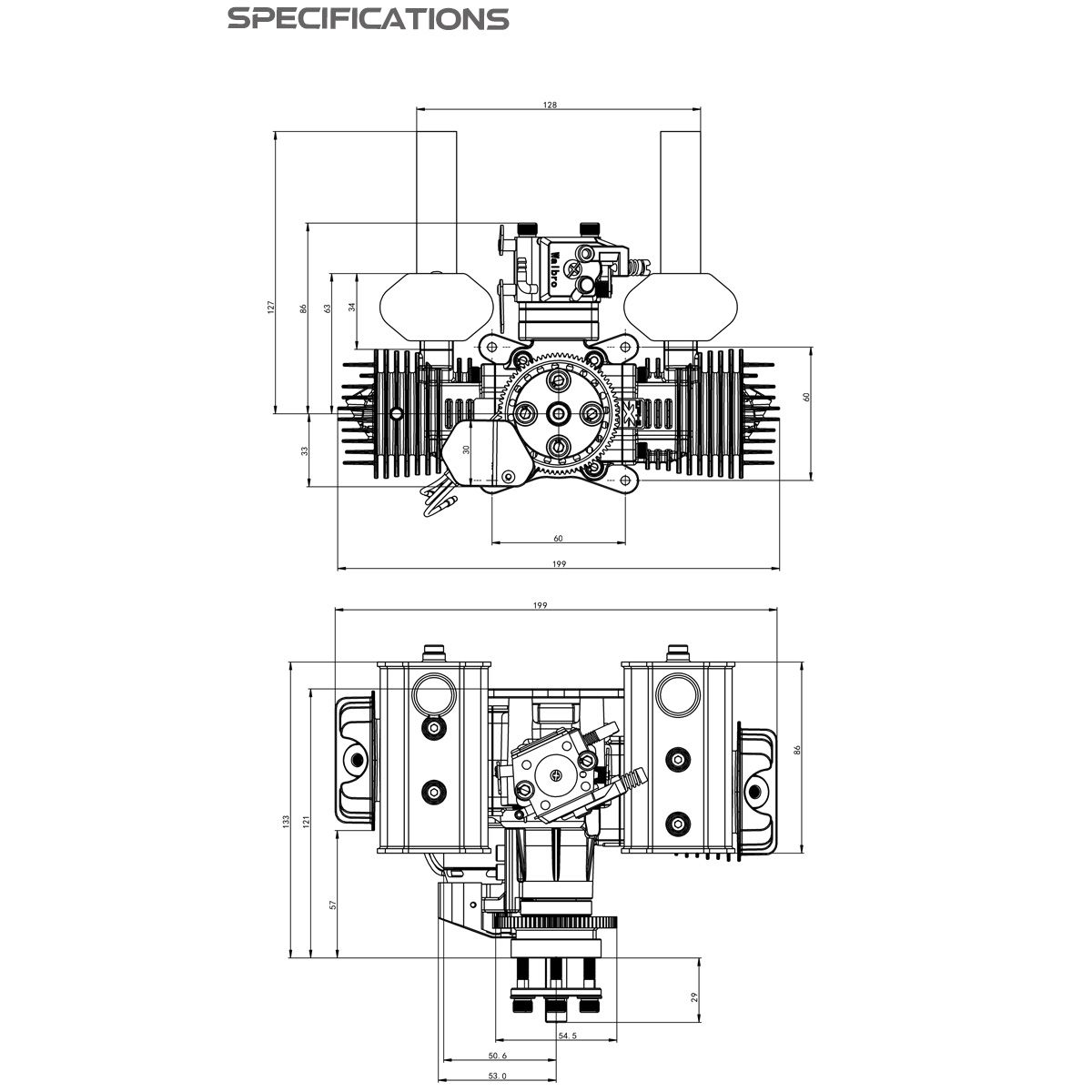

- Model: X-40cc-T Pro
- Displacement: 40cc (2.44 cu in)
- Performance: 4.6 HP
- Speed Range: 1800-7300 RPM (Test Propeller-20*8)
- Bore: 32 mm (1.26 in)
- Stroke: 27mm (1.06 in)
- Static Thrust: 10.5 kg@ 100 m ALT (23.2 lb @328 ft ALT}
- Static Thrust: 8.8 kg@ 1800 1n ALT (19.4 lb@ 5900 ft ALT)
- Compression ratio: 9:1
- Lubrication ratio: 30:1 (Fuel: 2-Stroke Motor Oil)
- Ignition Voltage: 6-14 V
- Spark Plug Type: CM6 Iridium Spark Plug
- Recommended Propeller: 19x8; 19x10; 20x8; 20x10
- Weight of Main Engine: 1190g
- Weight of Muffler Set: 136g
- Weight of Engine Mount Set: 84g
- Weight of Spark Plug: 13.5g x2
- Weight of CDI (Ignition): 175g
- Weight of Starter: 113g
- Weight of ESC: 36g
- Total Weight: 1786g (3.94 lb)
