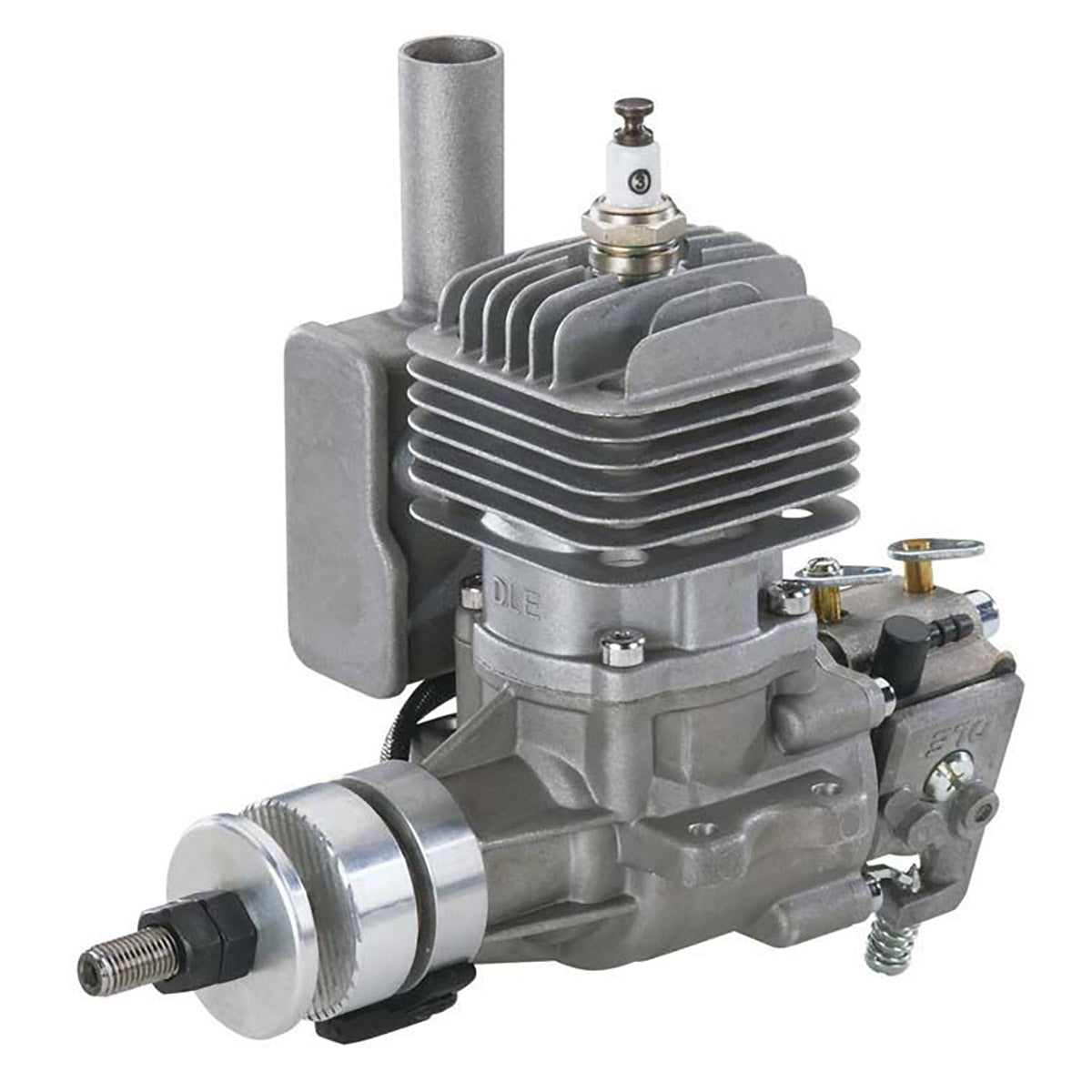

DLE-20 Engine

DLE-20 20cc Engine

More power than a CRRC Pro 26 or a Saito 1.25 nitro!

Click Here to Download the Warranty Return Form
Click Here to Download the Engine Manual

Includes:

• DLE-20 Engine
• Auto Advancing Electronic Ignition
• Mufflers, Gaskets and Bolts

Specifications:

• Horsepower: 2.5-HP/9000rpm
• RPM: 1750-9000 RPM
• Idle speed: 1750 rpm
• Static Thrust: 13.2 lb Pulling Force at 100 meters; 11.7 lb Pulling Force at 1800 meters
• Recommended Props: 14x10, 15x8, 16x6, 16x8, 17x6
• Displacement: 20cc
• Bore and Stroke: 32mm x 25mm
• Compression Ratio: 10.5:1
• Weight:
  • Engine - 23 oz (650g)
  • Exhaust - 1.8 oz (50g)
  • Ignition - 4.3 oz (120g)
  • Total - 1.8 lbs (820g)
• Fuel: 30:1 mix ratio
• Ignition: 4.8 to 8.4 volts
• Replacement Sparkplug: NGK CM6 or equivalent

Warranty for DLE Engine products are done directly through Chief RC Inc

Complete the form above for warranty issues with DLE engines. You must request an RMA from customer service prior to shipping your engine back to the Chief RC in Deland Florida. Include the completed form and return it with the engine.

Specifications:

• Horsepower: 2.5-HP/9000rpm
• RPM: 1750-9000 RPM
• Idle speed: 1750 rpm
• Static Thrust: 13.2 lb Pulling Force at 100 meters; 11.7 lb Pulling Force at 1800 meters
• Reccomended Props: 14x10, 15x8, 16x6, 16x8, 17x6
• Displacement: 20cc
• Bore and Stroke: 32mm×25mm
• Compression Ratio: 10.5:1
• Weight:
  • Engine - 23 oz (650g)
  • Exhaust - 1.8 oz (50g)
  • Ignition - 4.3 oz (120g)
  • Total - 1.8 lbs (820g)
• Fuel: 30:1 mix ratio
• Ignition: 4.8 – 8.4 volts
• Replacement Sparkplug: NGK CM6 or equivalent
