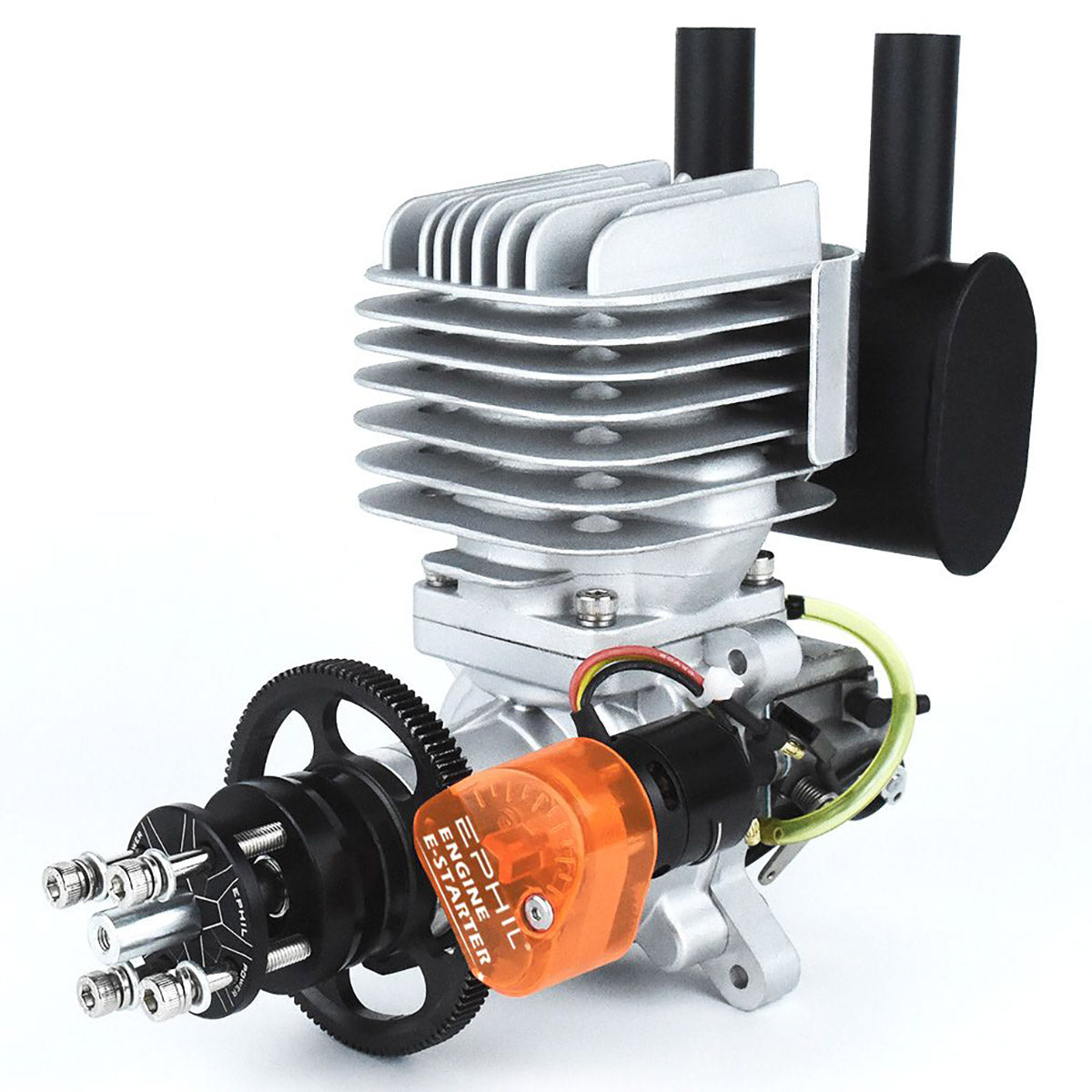

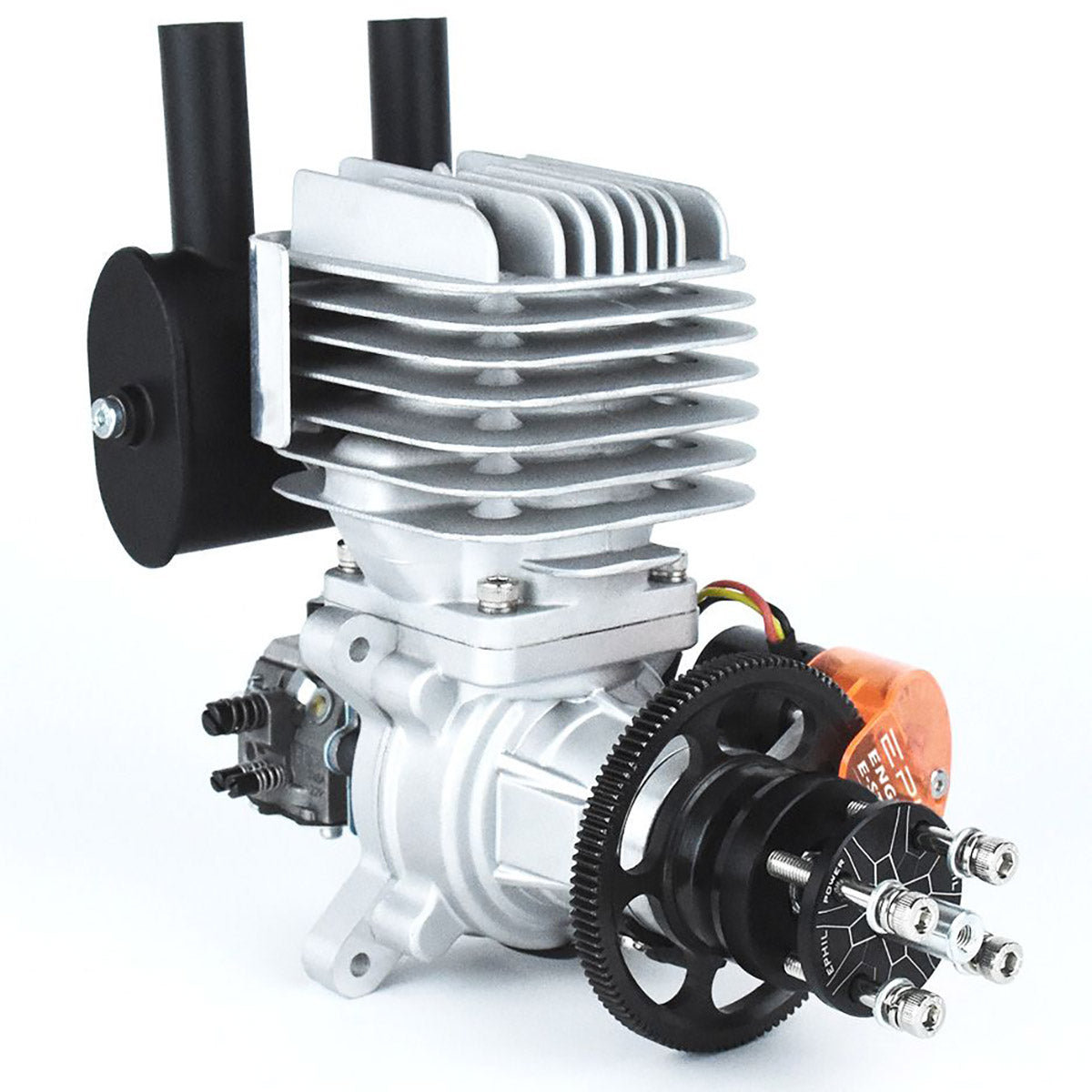

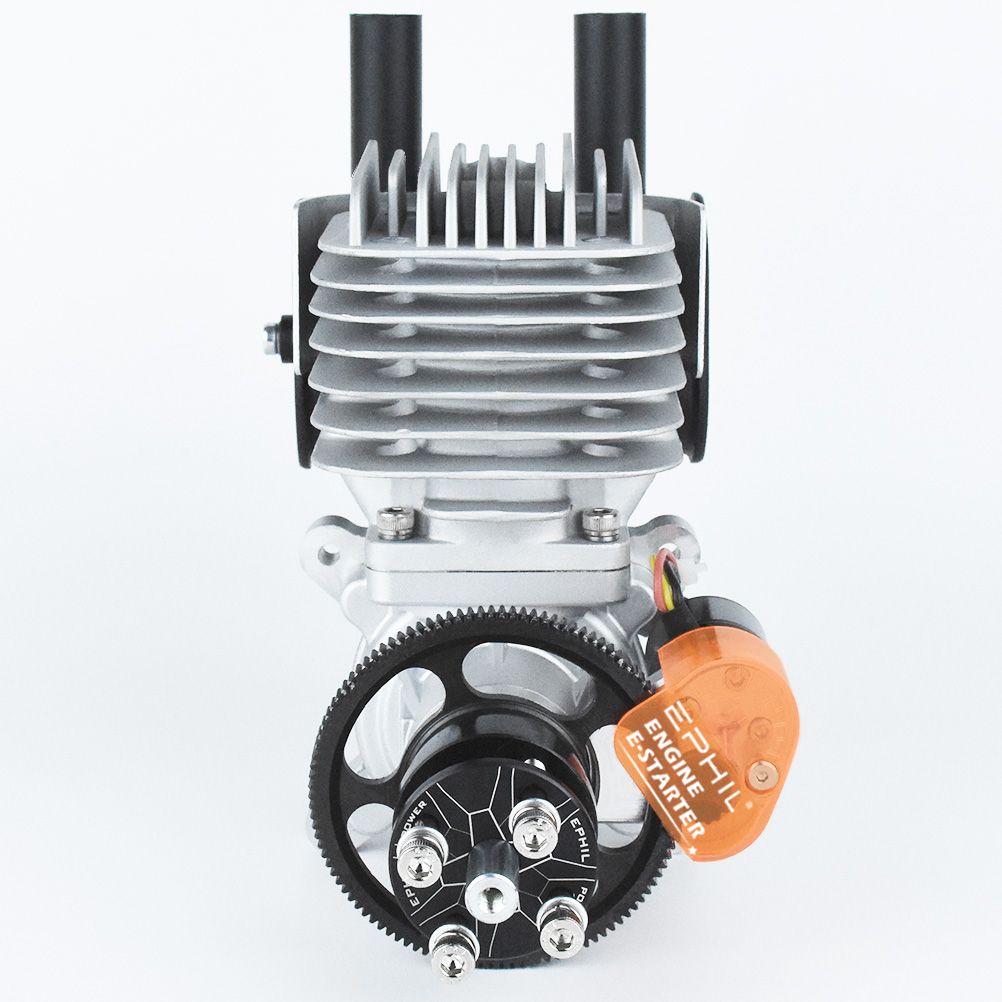

EPHIL X-Series 60cc-R Pro Gasoline Engine with E-Starter, Spark Plug & Electronic Ignition
ESC Battery Not Included - See Related Products to Purchase
Click Here for the ESC Starting Manual
- Note: Not compatible with DLE/RC Excel Tachometers
- Precision Manufacturing Using High Quality Aluminum Alloy Construction
- NSK Bearings with Walbro Carburetor
- Stable Running with Powerful Performance
- Long Life Span
- Easy to Start and Easy Maintenance
EPHIL CMS Iridium Spark Plug: More stable in high-temperature working environments with oil-gas mixture. Has a longer lifespan than the regular CMS spark plug.
Muffler: It is very easy to adapt a smoke system on the muffler. The smoke oil tube will fit into a brass fuel port.

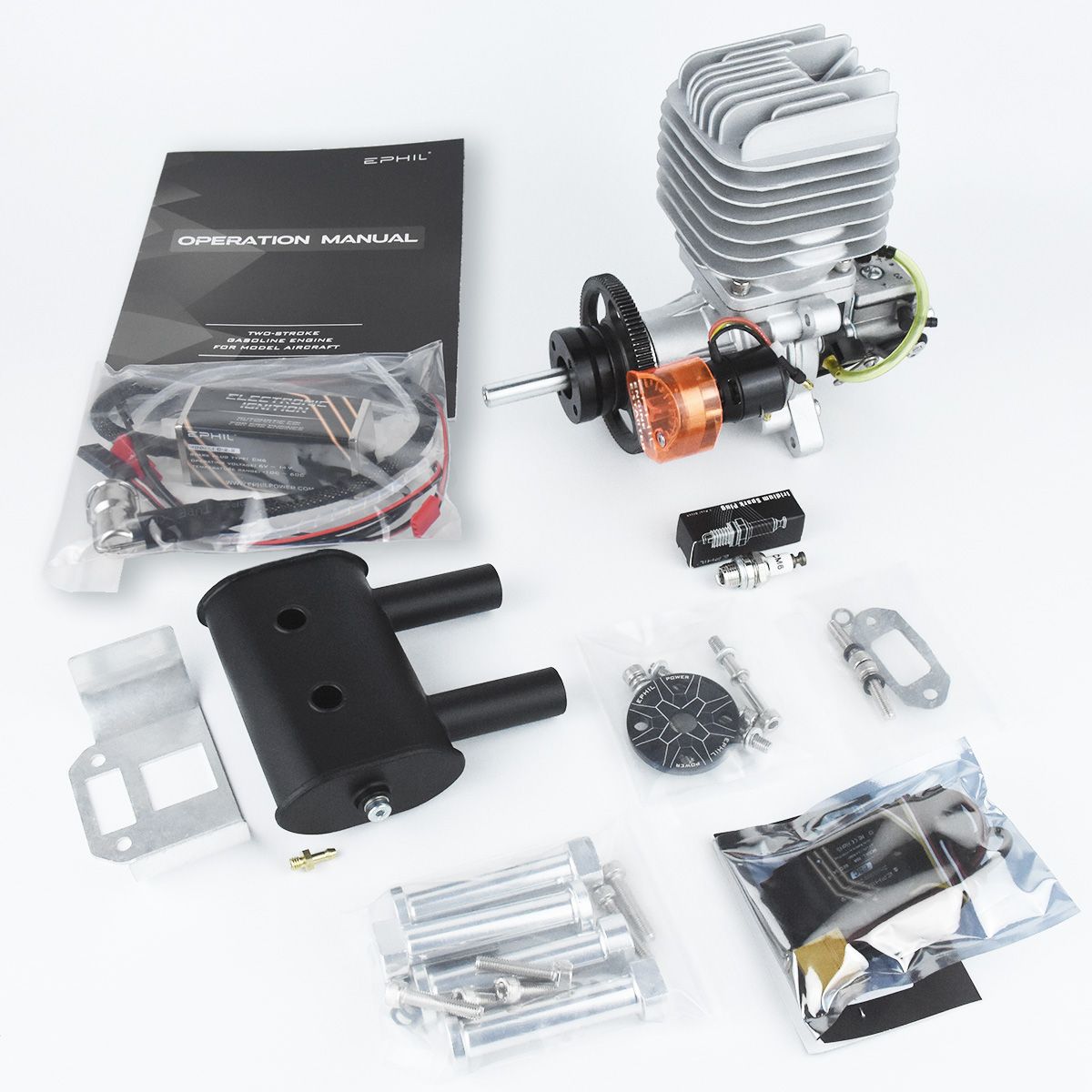

X-Series PRO Includes:
- X-Series PRO Engine
- Engine Muffler Set
- CM-6 Iridium Spark Plug
- Starter ESC
- Electronic CDI Ignition Module
- Engine Standoffs
- Manual and Warranty Card
EPHIL Engine Electric Starter
EPHIL's engine e-starter is meticulously designed and crafted specifically for the PRO engines. The e-starter has undergone multiple rigorous testing to ensure unparalleled efficiency and reliable use.
- High Efficiency and Quick Response
- Longer Engine Lifespan
- Lightweight Electric Starting
- Displacement: 60cc (3.66 cu in)
- Performance: 6.2HP
- Speed Range: 1800-6900 RPM (Test Propeller-24*9)
- Bore: 47mm (1.85 in)
- Stroke: 35mm (1.38 in)
- Static Thrust: 15.6 kg @ 100 m ALT (21.8 lb @ 328 ft ALT)
- Static Thrust: 13.6 kg @ 1800 m ALT (18.1 lb @ 5900 ft ALT)
- Compression Ratio: 8:1
- Lubrication Ratio: 30:1 (Fuel: 2-Stroke Motor Oil)
- Ignition Voltage: 6-14 V
- Spark Plug Type: CM6 Iridium Spark Plug
- Recommended Propeller: 22x10; 23x8; 23x10; 24x8; 24x9
- Weight of Main Engine: 1680g
- Weight of Muffler Set: 135g
- Weight of Engine Mount: 115g
- Weight of Spark Plug: 13.5g
- Weight of CDI (Ignition): 104g
- Weight of ESC: 36g
- Total Weight: 2047g (4.5 lb)
