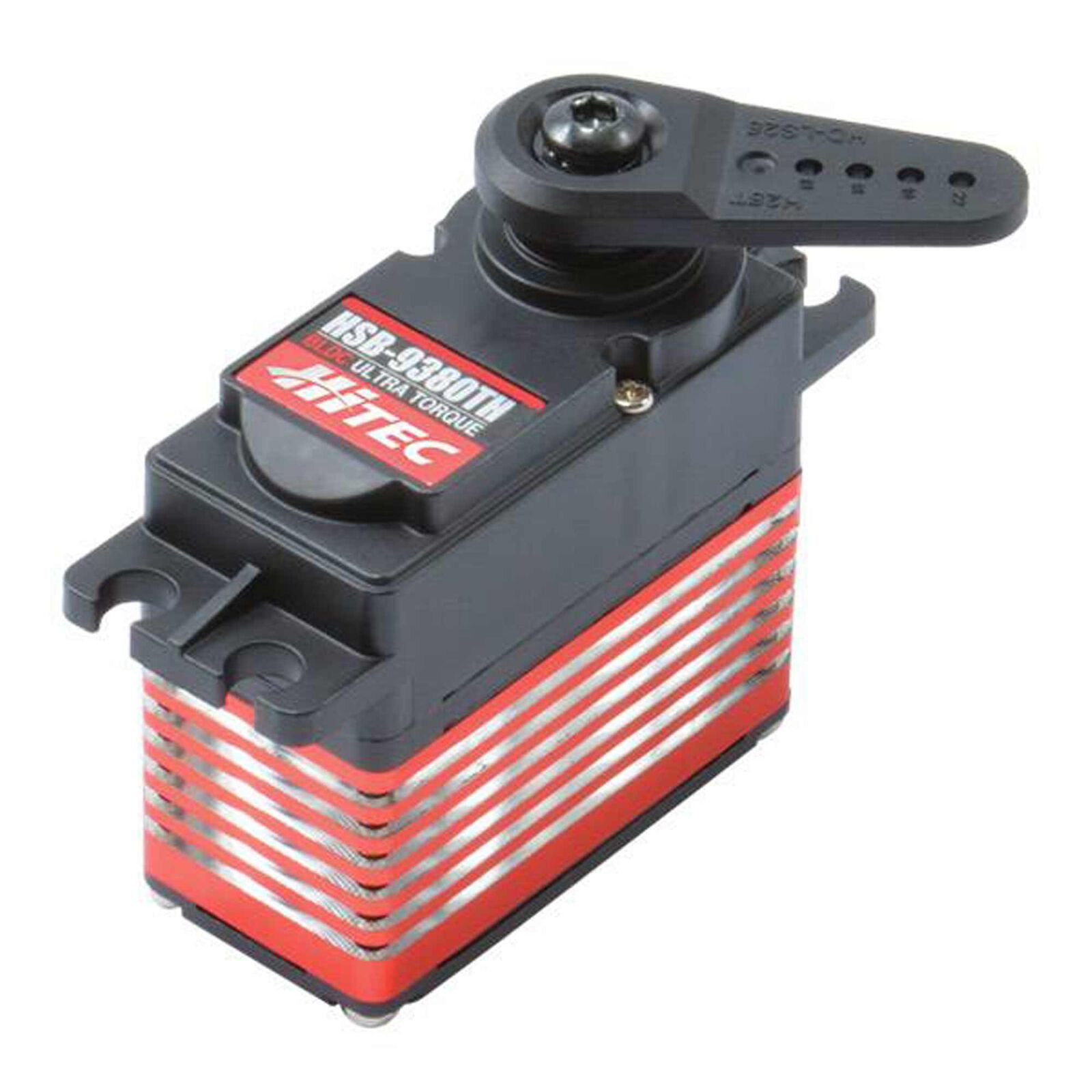

HSB-9380TH Ultra Torque, Brushless, Titanium Gear Servo, by Hitec
Note: This Servo Uses a 25-tooth Futaba Arm
With ultra-efficient Neu brushless motors, titanium gear trains, low current consumption and constant output power, the HSB-93XX series of servos is the perfect match for the most discriminating pilots and racers.
Programmable 12 Bit Digital Circuit
Using the DPC-10 PC interface (PN 44426) and downloadable software, users can program a variety of features in the HSB-9XXX Series including: Fail Safe On/Off and Position, direction, EPA, Speed (Slower), dead Band, and Soft Start.
Power Efficient Brushless Motor Controller
Energy efficiency is a common interest for all modelers. The HSB-9XXX Series uses the latest control circuit technology including a regenerative braking circuit which puts power back into the battery as the motor slows. This feature, combined with ultralow current draw under sustained loads, allows Hitec's brushless servos to consume 1/5 the power of most other brushless servos on the market today.
Custom NeuMotor
Designed by Steve Neu exclusively for the HSB-9XXX Series, these high performance, brushless motors provide longstanding durability and performance.
Constant Torque Output:
Thanks to Hitec's revolutionary circuit and motor designs, the HSB-9XXX Series maintain their speed in a more consistent manner, regardless of load.
Hybrid MPD 1st Gear:
The unique ultra-durable Metal/Plastic/duralumin hybrid first gear prevents inadvertent electrical noise from affecting other components within your aircraft or vehicle.
Industry-Leading Titanium Gear Train
Hitec was the first manufacturer to utilize low wear Titanium gears in Hitec's servos and continues to be the leader in Titanium gear technology.
25-Tooth Standard Spline
Hitec Brushless servos utilize a standard 25 tooth output spline for maximum compatibility with the large variety of aftermarket horn available on the market these days.
- Model: HSB-9380TH, Ultra Torque
- Speed (sec/60º @ 6.0/7.4V): 0.17/0.14
- Torque (oz-in 6.0/7.4V): 472/472
- Dimensions: 1.57" x 0.78" x 1.45" (40mm x 20mm x 37mm)
- Weight: 2.19 oz (62g)
- Application: Ideal for Large Planes and 1/8th to 1/5th Scale On and Off-Road Vehicles
