SB-2274SG BE High Voltage Brushless, Black Edition, Steel Gear Digital Servo
by
Savox
SKU: SAV-SB-2274SG-BE

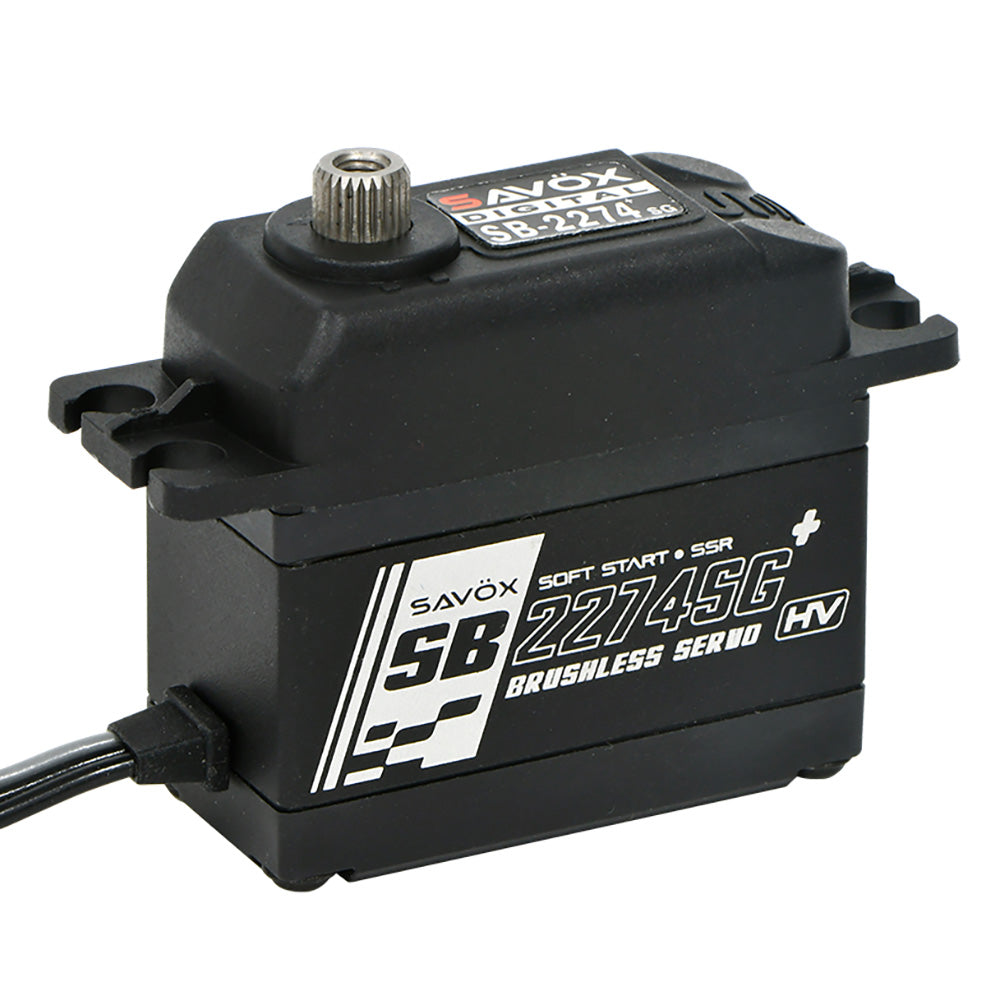

Savox SB-2274SG BE High Voltage Brushless, Black Edition, Steel Gear Digital Servo
The Savox SB-2274SG High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution.
- Supports SSR Function
- Unique steel gear train.
- Capable of HV operation.
- Brushless motor for smooth operation and efficiency.
- Ideal for 1/10, 1/8 buggies, and large scale aircraft.
- Torque @ 6v: 20.0kg/277.7oz-in
- Torque @ 7.4v: 25.0kg/347.2oz-in
- Speed @ 6v: 0.105 sec/60 deg
- Speed @ 7.4v: 0.08 sec/60 deg
- Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
- Weight: 69.0g
- Torque @ 6v: 20.0kg/277.7oz-in
- Torque @ 7.4v: 25.0kg/347.2oz-in
- Speed @ 6v: 0.105 sec/60 deg
- Speed @ 7.4v: 0.08 sec/60 deg
- Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
- Weight: 69.0g
- Operating Temperature: 14° - 122°F (-10° - 50°C)
- Running Current (no load): 180mA @6.0V, 220mA @7.4V
- Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
- Idle Current: 5mA @6.0V, 5mA @7.4V
- Wire Length: 300 +/- 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 ? 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 ? 2200 µ second
- Maximum Travel: Appx 130° (900 ? 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Brushless
