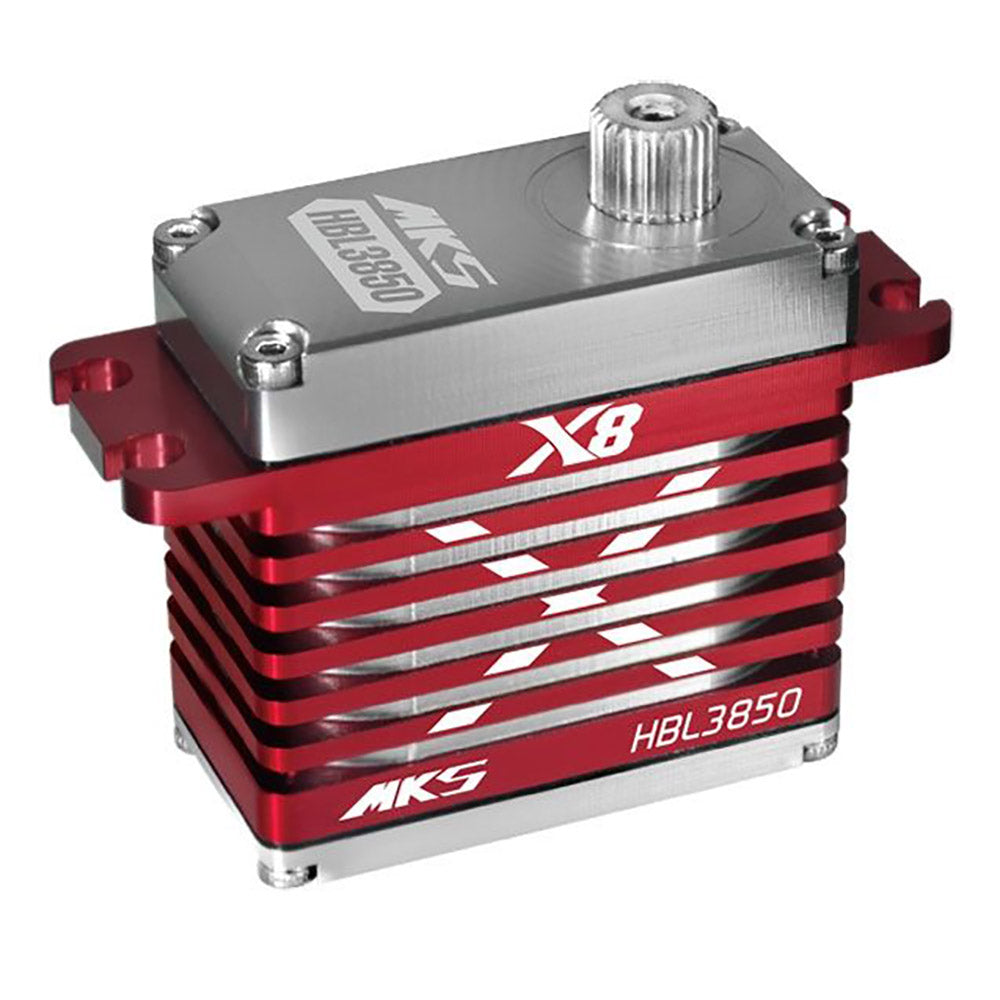

HBL3850 X8 Digital Brushless High-Torque High Voltage Servo

HBL3850 X8 Digital Brushless High-Torque High Voltage Servo, with Titanium Gears, by MKS

Note: X8 Servos are Not Compatible with Standard Servo Arms. See Related Items for Available Arms

• Torque (kg-cm): 42 (6.0V) / 51 (7.4V) / 57 (8.2V)
• Torque (oz-in): 583.2 (6.0V) / 708.2 (7.4V) / 791.5 (8.2V)
• Speed: 0.142 s (6.0V) / 0.115 s (7.4V) / 0.104 s (8.2V)
• Stall Current (at locked load): 5.8A (6.0V) / 7.4A (7.4V) / 8.2A (8.2V)
• Working Voltage: 6.0V ~ 8.4V DC Volts
• Working Frequency: 1520μs / 333Hz
• Dead Band: 0.0008 ms (Default)
• Bearing: 2* Ball Bearing
• Gear: Metal Alloy Gear
• Motor: Japanese-made Brushless Motor

• Torque (kg-cm): 42 (6.0V) / 51 (7.4V) / 57 (8.2V)
• Torque (oz-in): 583.2 (6.0V) / 708.2 (7.4V) / 791.5 (8.2V)
• Speed: 0.142 s (6.0V) / 0.115 s (7.4V) / 0.104 s (8.2V)
• Stall Current (at locked load): 5.8A (6.0V) / 7.4A (7.4V) / 8.2A (8.2V)
• Working Voltage: 6.0V ~ 8.4V DC Volts
• Working Frequency: 1520?s / 333Hz
• Dead Band: 0.0008 ms (Default)
• Bearing: 2* Ball Bearing
• Gear: Metal Alloy Gear
• Motor: Japanese-made Brushless Motor
