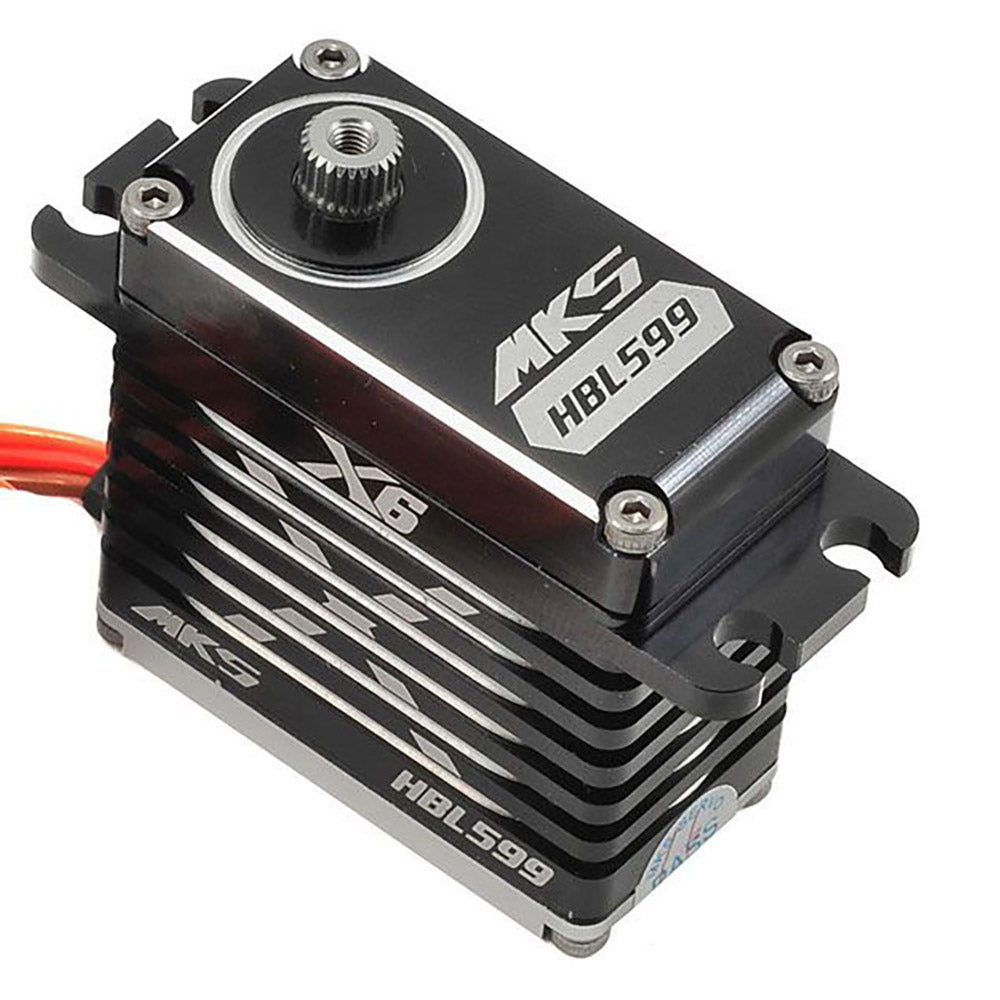

HBL599 Digital Brushless Ultra Speed/Torque High Voltage Servo, w/Titanium Gears, by MKS
- 6mm Ouput Gear
- One-Piece Aluminum CNC Casing
- Brushless Motor
- High Voltage System
- Dead Band: 0.0008ms (Default)
- Control System: +Pulse Width Control
- Working Frequence: 1520?s / 333hz
- Operating Voltage: 3.5 ~ 8.4 Volts
- Operating Temperature Range: -10 to + 60 Degree C
- Operating Speed (6V): 0.11 sec/60° degrees at no load
- Operating Speed (7.4V): 0.09 sec/60° degrees at no load
- Operating Speed (8.4V): 0.08 sec/60° degrees at no load
- Stall Torque (6V): 416.62 oz/in (30 kg/cm)
- Stall Torque (7.4V): 527.72 oz/in (38 kg/cm)
- Stall Torque (8.4V): 583.27 oz/in (42 kg/cm)
- Motor Type: Brushless Motor
- Potentiometer Drive: Indirect Drive
- Bearing Type: 12x8 mm Double bearings
- Gear Type: Chrome-Titanium alloy gear
- Connector Wire Length: 24.0 cm (9.4 in)
- Dimensions: 40 x 20 x 38.5 mm
- Weight: 73.12 g
- Dead Band: 0.0008ms (Default)
- Control System: +Pulse Width Control
- Working Frequence: 1520?s / 333hz
- Operating Voltage: 3.5 ~ 8.4 Volts
- Operating Temperature Range: -10 to + 60 Degree C
- Operating Speed (6V): 0.11 sec/60° degrees at no load
- Operating Speed (7.4V): 0.09 sec/60° degrees at no load
- Operating Speed (8.4V): 0.08 sec/60° degrees at no load
- Stall Torque (6V): 416.62 oz/in (30 kg/cm)
- Stall Torque (7.4V): 527.72 oz/in (38 kg/cm)
- Stall Torque (8.4V): 583.27 oz/in (42 kg/cm)
- Motor Type: Brushless Motor
- Potentiometer Drive: Indirect Drive
- Bearing Type: 12x8 mm Double bearings
- Gear Type: Chrome-Titanium alloy gear
- Connector Wire Length: 24.0 cm (9.4 in)
- Dimensions: 40 x 20 x 38.5 mm
- Weight: 73.12 g
