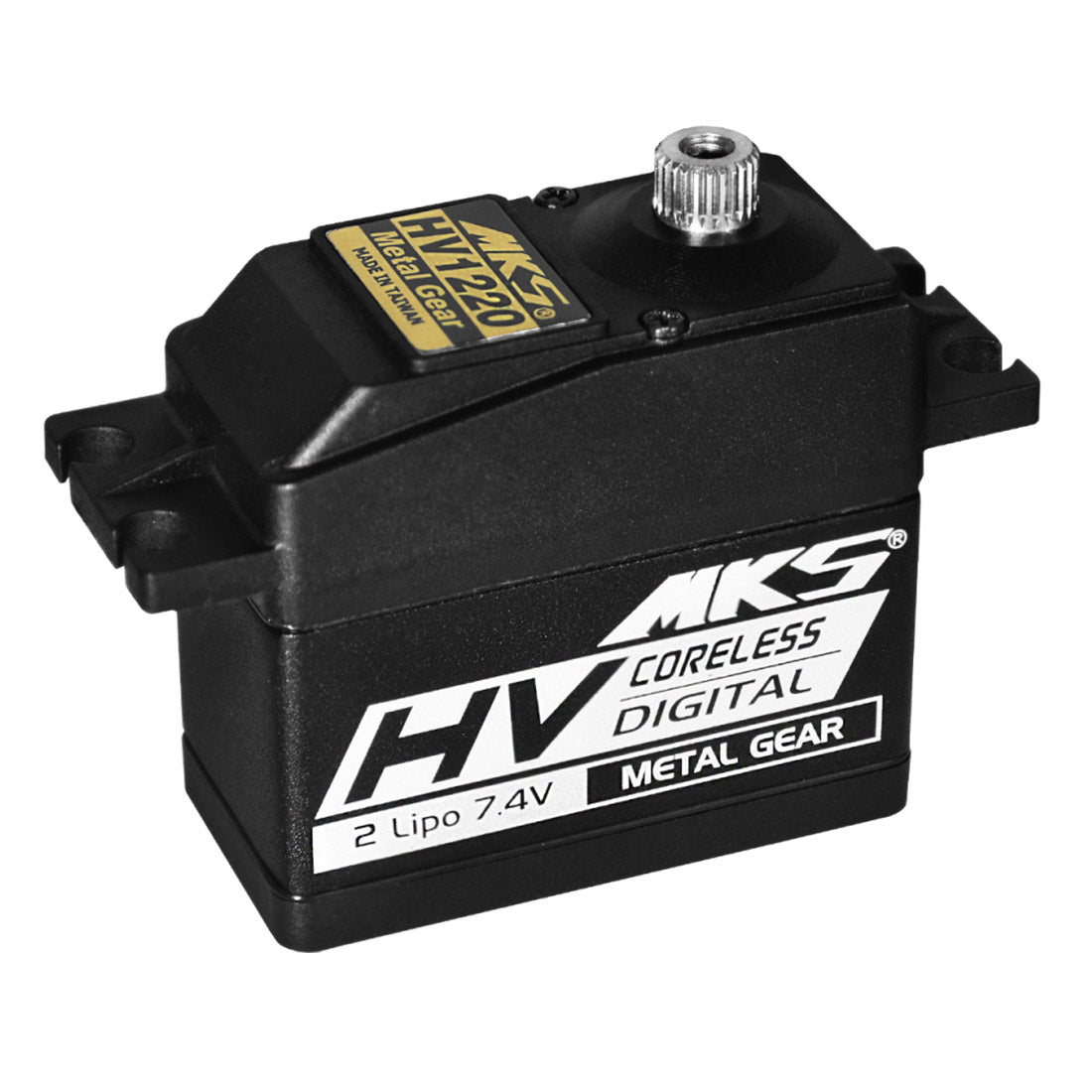

HV1220 Digital High-Torque High Voltage Servo, with Titanium Gears, by MKS
- Dead Band: 0.0008ms (Default)
- Control System: +Pulse Width Control
- Working Frequence: 1520?s / 333hz
- (RX) Required Pulse: 3.0~8.4 Volt Peak to Peak Square Wave
- Operating Voltage: 4.8~8.4 V DC Volts
- Operating Temperature Range: -10 to + 60 Degree C
- Operating Speed (7.4V): 0.129 sec/60° degrees at no load
- Operating Speed (8.4V): 0.115 sec/60° dagrees at no load
- Stall Torque (7.4V): 22.1 kg-cm (307 oz/in)
- Stall Torque (8.4V): 23 kg-cm (319 oz/in)
- Motor Type: Coreless Motor
- Potentiometer Drive: Direct Drive
- Driver Type: FET
- Bearing Type: Dual Ball Bearings
- Gear Type: Titanium Gears
- Programmable: NO
- Connector Wire Length: 15.0 cm (5.9 in)
- Dimensions: 40X20X37 mm
- Weight: 57.70 g ( 2.03oz)
- Dead Band: 0.0008ms (Default)
- Control System: +Pulse Width Control
- Working Frequence: 1520?s / 333hz
- (RX) Required Pulse: 3.0~8.4 Volt Peak to Peak Square Wave
- Operating Voltage: 4.8~8.4 V DC Volts
- Operating Temperature Range: -10 to + 60 Degree C
- Operating Speed (7.4V): 0.129 sec/60° degrees at no load
- Operating Speed (8.4V): 0.115 sec/60° dagrees at no load
- Stall Torque (7.4V): 22.1 kg-cm (307 oz/in)
- Stall Torque (8.4V): 23 kg-cm (319 oz/in)
- Motor Type: Coreless Motor
- Potentiometer Drive: Direct Drive
- Driver Type: FET
- Bearing Type: Dual Ball Bearings
- Gear Type: Titanium Gears
- Programmable: NO
- Connector Wire Length: 15.0 cm (5.9 in)
- Dimensions: 40X20X37 mm
- Weight: 57.70 g ( 2.03oz)
