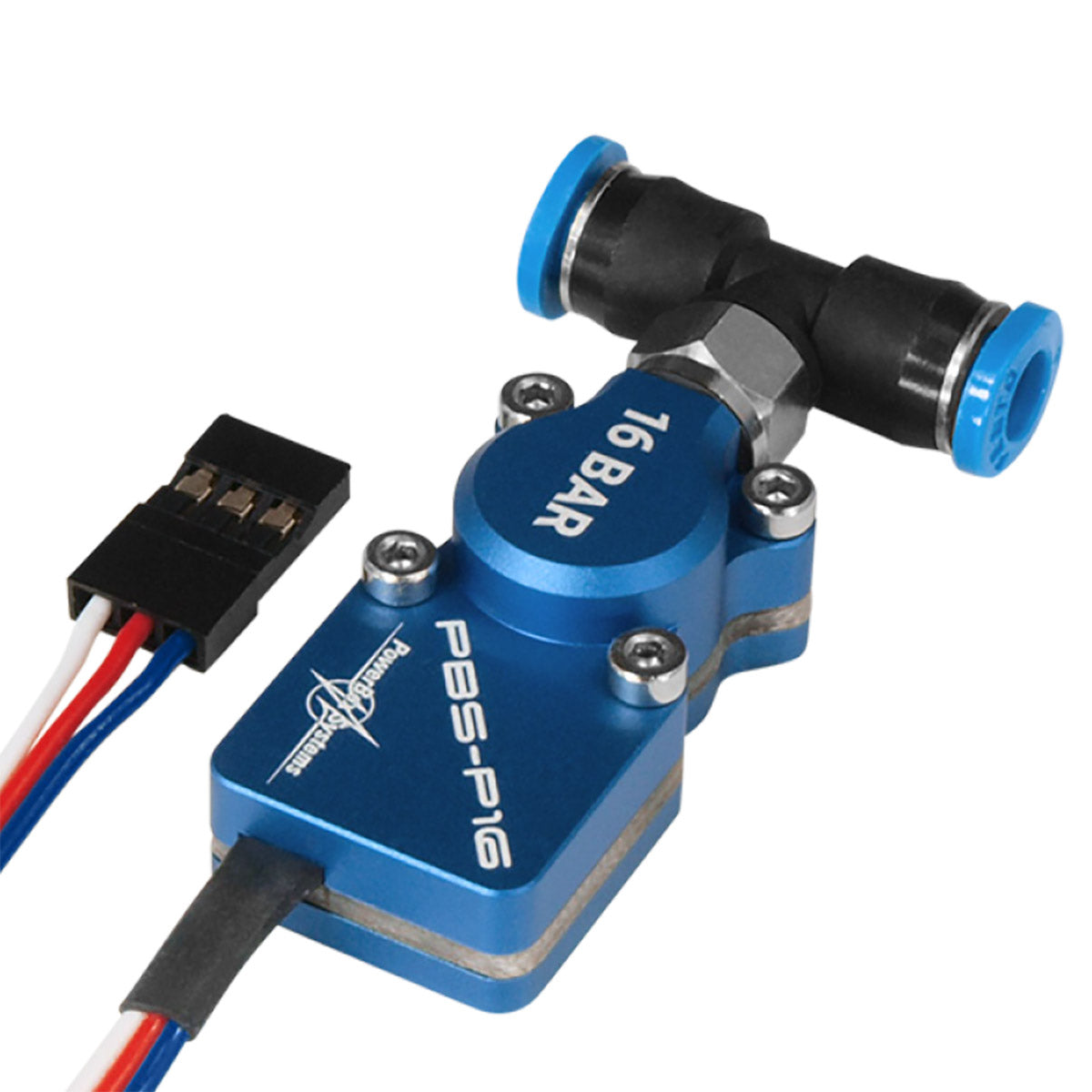

PowerBox PBS-P16 Pressure Sensor, for Telemetry Systems
The robust aluminum case is machined from solid, and contains a small pressure chamber fitted with a digital Mems pressure sensor. The Festo T-connector is simply installed in the existing 4 mm pressure line to the pressure tank. Other pressure hose connections can easily be screwed into the PBS-P16's M5 threaded socket.
The PBS-P16 is Plug'n'Play for the CORE telemetry system, but can also be switched for use with Jeti, M-Link and HoTT using the PowerBox Terminal program.
- Pressure measurement up to 16 Bar (230 psi)
- Compact design
- Low weight
- Supports the following telemetry systems: PowerBox CORE P²BUS, Jeti EX-Bus, Multiplex M-Link, Graupner HoTT
- Operating voltage: 4.0V - 9.0V
- Current drain Power-on state: max. 20mA
- Supported RC systems: PowerBox, Jeti, Multiplex, Graupner
- Dimensions: 31 x 17 x 12 mm
- Weight: 14g
- Temperature range: -30°C to +85°C
