SB-2273SGP Plus High Voltage Brushless, High Torque, Steel Gear Digital Servo

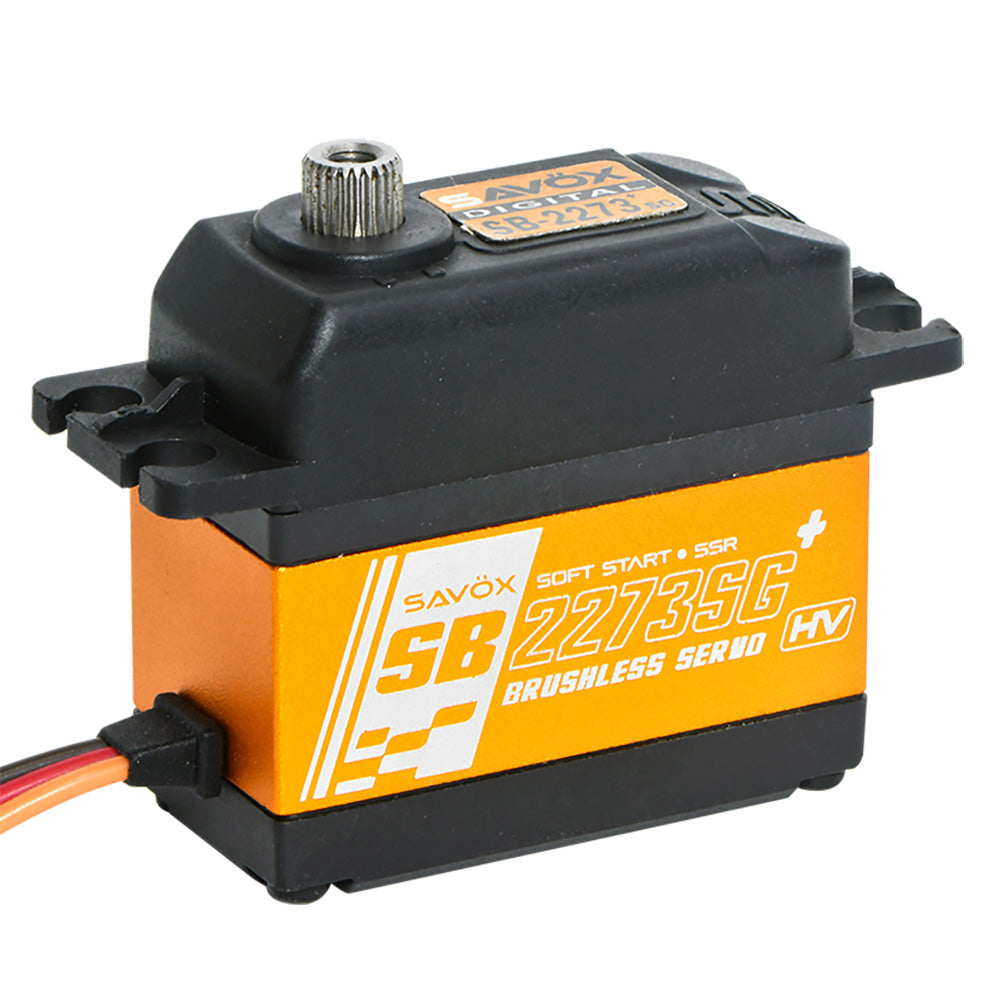

Savox SB-2273SGP Plus High Voltage Brushless, High Torque, Steel Gear Digital Servo

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.
This is the Savox SA-2273SG High Voltage High Torque Brushless Unique Steel Gear Digital Servo.

• Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears.
• Super light-weight.
• Brushless motor provides extremely high speed, high torque, incredible efficiency, and amazingly low power consumption.
• The full aluminum case design not only looks good but also allows for cooler and smoother operating temps.
• Savox servos are totally green – from materials to production, these servos are environmentally friendly.
• Ideal for 1/8th or 1/10th scale trucks and buggies (electric & nitro) and giant scale aircraft. Also suitable for use in boats and helis.

• Dimensions(mm): 40.3x20.2x38.5
• Weight(g): 69.0
• Speed(@6.0V sec/60): .12
• Torque(@6.0V oz-in): 319.4
• Speed(@7.4V sec/60): .095
• Torque(@7.4V oz-in): 388.8
• Gear: Unique Steel
• Bearing: 2BB
• Case: Full Aluminum
• 25 Tooth Spline
• 1 Year Limited Warranty
• Frequency: 250-333
• Pulse Rate Frequency: 1520
• Frequency: 250-333
• Pulse Rate Frequency: 1520

• Dimensions(mm): 40.3x20.2x38.5
• Weight(g): 69.0
• Speed(@6.0V sec/60): .12
• Torque(@6.0V oz-in): 319.4
• Speed(@7.4V sec/60): .095
• Torque(@7.4V oz-in): 388.8
• Gear: Unique Steel
• Bearing: 2BB
• Case: Full Aluminum
• 25 Tooth Spline
• 1 Year Limited Warranty
• Frequency: 250-333
• Pulse Rate Frequency: 1520
• Frequency: 250-333
• Pulse Rate Frequency: 1520
