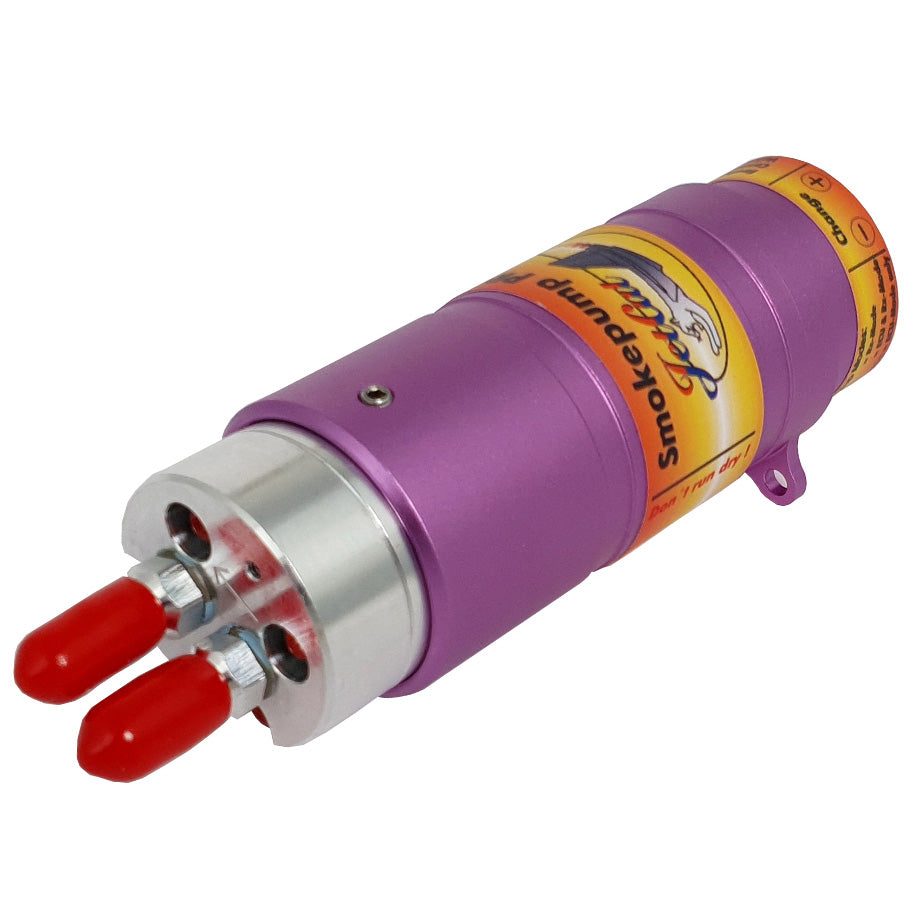

Smoke Pump Pro, for JetCat Turbine Engines
by
JetCat
SKU: JC-61167-0010
Regular price
- Unit price
- / per
Smoke Pump Pro, for JetCat Turbine Engines
by
JetCat
SKU: JC-61167-0010
Regular price
- Unit price
- / per
Availability:
DECO Banner
Manage Banner
- Turn on embed
- Create a DECO Banner from our app
- Select a matching position
Fast Shipping
Secure Payment
Quantity selected exceeds current stock
Additional Shipping Info:
Qualifies for FREE Shipping Over $150 (48 States)
Post
Share
Pin it
XL Fuel Pump, for JetCat P300-RX/ P400-RX Turbine Engines
- Fully opto-isolated inputs
- Can be operated parallel to the turbine battery.
- 3 different operating modes can be programmed:
1) Rx-Mode: Control via a free receiver channel (proportional power control or on/off control only)
2) ECU mode: In conjunction with the JetCat ECU, the pump is controlled via the "smoker valve" output of the ECU.
3) ECU/ Rx-Mode: control of the pump via a free receiver channel, in addition the smoker pump is connected to the JetCat ECU; this prevents accidental starting of the pump with the turbine stopped (i.e. the ECU only releases the pump if the turbine is actually running)
- Freely programmable conveying capacity.
- In addition, the pump has a control output for an optional electromagnetic shut-off valve. The valve opens automatically whenever the pump is running (Art. No.:61106-00).
- Shapely, sturdy, anodized aluminum housing
- Dimensions: D=31,5mm ; L=77mm; 110gr
- Flow rate: max 1800ml/min (measured with smoke oil as medium and 7V battery voltage!)
- Pressure: max. 5bar
- Power supply: 6,8-9,6V, max 7A
- Inputs: 1x control input from receiver 1x enable input to the ECU
- Outputs: 1x control output for electromagnetic shut-off valve
