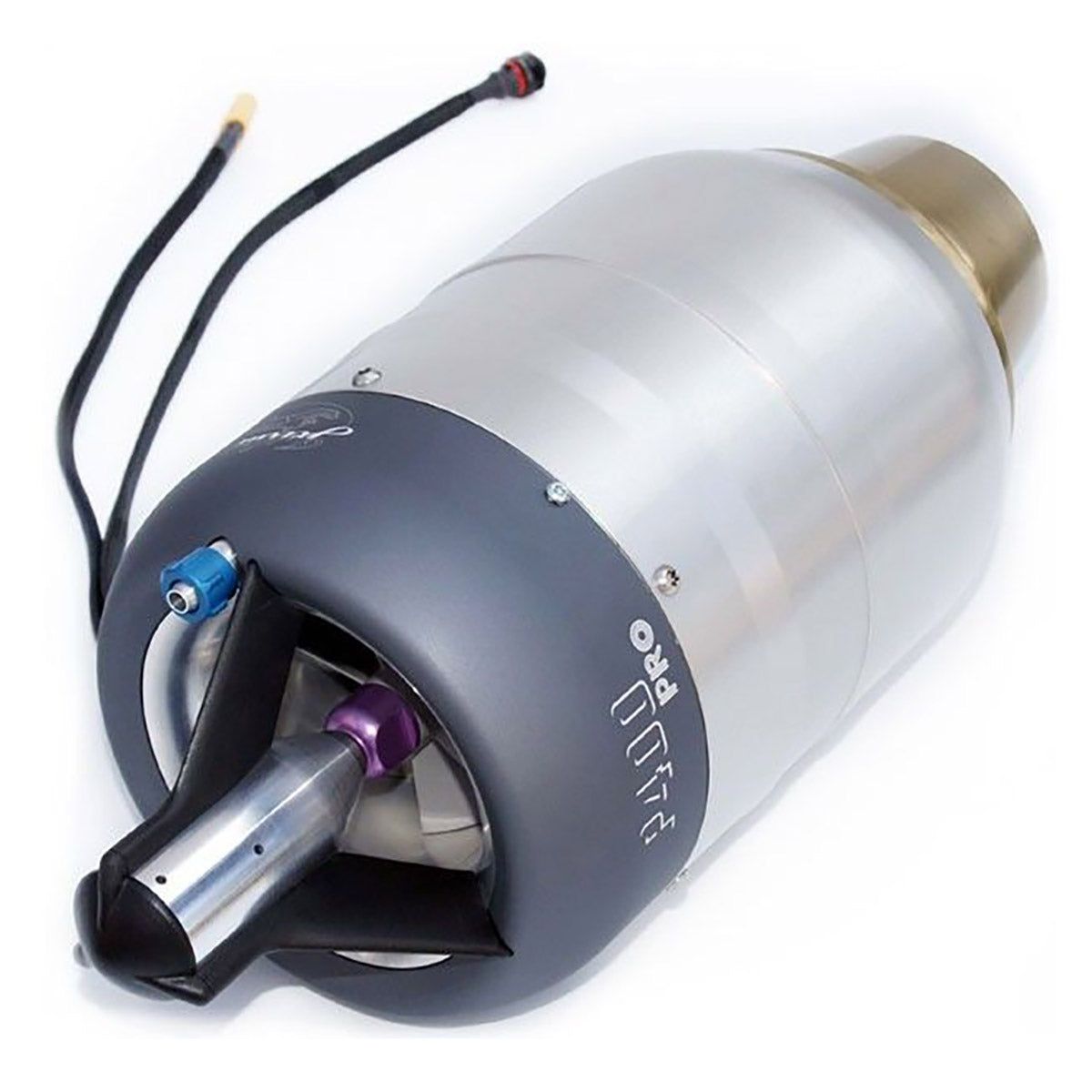

P400-PRO-LN Turbine Engine, 89.9 lbs Thrust, from JetCat
Click Here to Download Instruction Manual
Click Here for the PRO Turbine Engine Catalog & Details
The JetCat PRO turbines offer maximum integration and installation. All system equipment required for turbine operation is fully integrated under the turbine hood. Apart from the supply battery, the fuel tank and the control signals, no further external subsystems are required! The control signals are output on a data cable terminated with a 15-pin SUB-D connector. Power is optionally supplied via the power cable with XT60 plug for direct battery connection.
JetCat PRO RC-Set including:
- 1x JetCat PRO Turbine Engine
- 1x Turbine Mounting Clamp
- 1x JetCat PRO-Interface
- 1x JetNet
- 1x Remote Controller GSU V2.0
JetCat-PRO turbine functions:
Integrated turbine components:
- ECU (electronic control unit)
- Integrated brushless fuel pump
- Fuel and kerosene start valves
- fuel filter
- kerosene starter
- Barometric height / pressure sensor
- 4-pole Molex extension plug (e.g. for smoke pumps / fuel pump)
- Vent opening with integrated one-way valve (e.g. for pressurizing the fuel system)
Power Supply:
Over 3 cells LiPo battery / XT60 connection / capacity 3000mAh or higher
Data connector (section)
Over 15-pin SUB-D (male) there are the following control options:
- 1x PowerOn control signal
- 2x PWM input channels (e.g. for RC remote control; THR / AUX)
- 2x independent RS232 interfaces for computer remote control and / or interconnection of several turbines
- 1x Analog voltage regulation / sensor input
- 1x JetCat bus interface, e.g. for connection of GSU and / or other JetCat accessories (LCU / flow sensor / BMS system etc.) CAN bus interface for control and data reporting
The standard P300 / P400-PRO-LN Engines have a "normal" starter motor, without generator (to save costs, e.g. for hobby applications). With the "JetCat-PRO" interface, the Engines can easily be used for RC model applications. The PRO interface has already integrated the full functionality of the telemetry adapter!
- Mass flow (kg/s): 0.67
- Consumption Full load (ml/min): 1392
- Consumption idle (ml/min): 200
- Weight [g]: 4010
- Dimensions of the diameter (mm): 148.4
- Length (mm): 390
- Exhaust gas temperature (°C): 480-750
- Idle speed (1/min): 35000
- Max rpm (1/min): 98000
- Thrust at idle (N): 14
- Thrust @ maxRpm (N): 425
- Thrust @ maxRpm (lb): 89.9
- Exhaust gas velocity (km/h): 2122
- Exhaust gas power output (kW): 116.4
- SFC @ maxRpm (kg/Nh): 0.157
