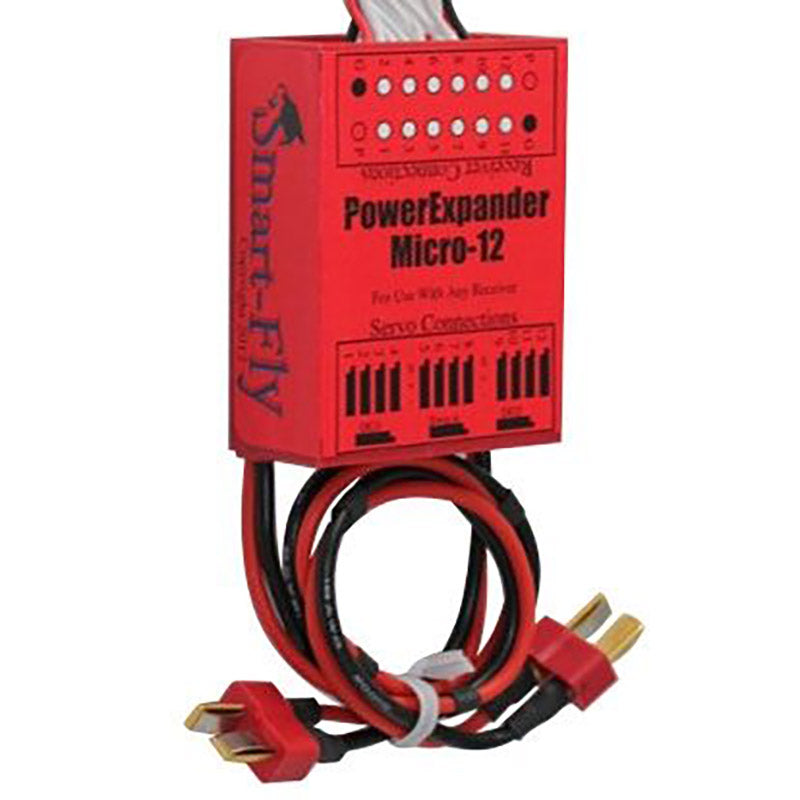

Smart-Fly PowerExpander Micro-12G
Click Here for More Information
- For use with any standard receiver
- Two channels with two servo outputs
- Ten channels with single servo output
- Compatible with battery packs up to 8.5V
- Provides full battery pack voltage to servos
- Built-in BatShare for battery input protection
- Inputs protect against cell failure or power shorts
- Filtered and regulated 5.0V power to receiver
- Dual regulators for receiver
- Full RF filtering of all signals in and out of unit
- Fully buffered outputs on all channels
- Servo signal lines boosted to 5V
- Long servo lead line matching
- Operates with optional Failsafe-switch
- Light weight, 1.3oz, 37g
- Compact design, footprint is 2.0” x 1.5”
The PowerExpander Micro-12G is designed for use with any standard receiver. The unit has twelve pitails that plug into receivers with up to twelve channels. Two of the Micro-12G channels have two outputs (1&12) and the other ten channels have a single output each. This tiny unit has most of the features of our larger PowerExpanders with the exception of multiple servo outputs per channel. It has a built in BatShare, receiver and servo signal line filtering, amplification of the servo signal to 5V and can be used with an optional failsafe switch. For detailed information please see the user manual link.
