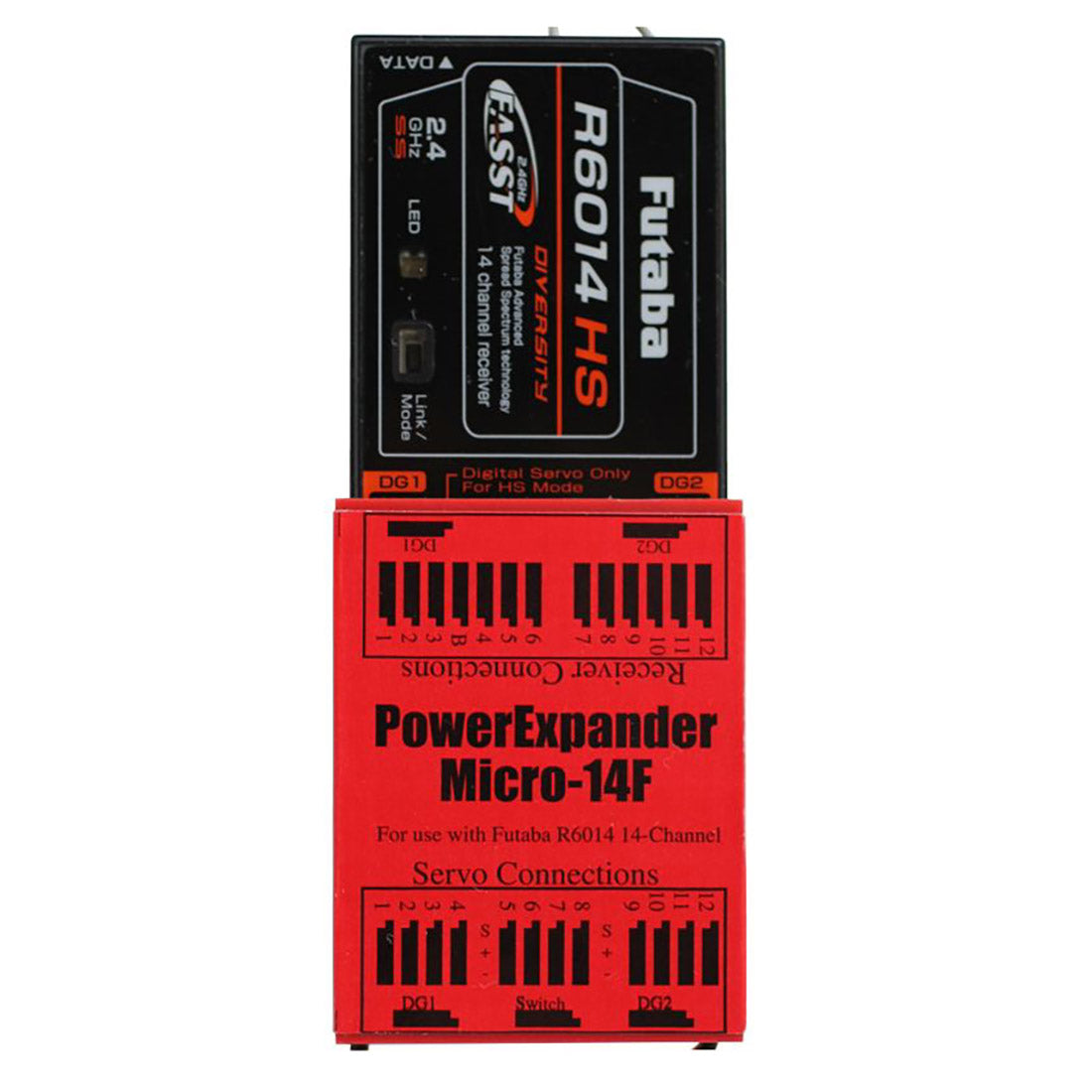

Smart-Fly PowerExpander Micro-14F for Futaba R6014xx Receivers
The PowerExpander Micro-14F is designed for use with the Futaba R6014xx receivers.The unit plugs directly into the R6014 receiver servo and power bus.All 14 channels of the receiver are passed to the output of the unit.This tiny unit has most of the features of our larger PowerExpanders with the exception of multiple servo outputs per channel.It has a built in BatShare, receiver and servo signal line filtering, amplification of the servo signal to 5V and can be used with an optional failsafe switch.For detailed information please see the user manual link.
- For use with Futaba R6014xx receivers
- Compatible with battery packs up to 8.5V
- Provides full battery pack voltage to servos
- Built-in BatShare for battery input protection
- Inputs protect against cell failure or power shorts
- Filtered and regulated 5.0V power to receiver
- Dual regulators for receiver
- Full RF filtering of all signals inand out of unit
- Fully buffered outputs on all channels
- Servo signal lines boosted to 5V
- Long servo lead line matching
- Operates with optional Failsafe-switch
- Light weight, 1.3oz, 37g
- Compact design, footprint is 2.0” x 1.5”
